Airy Technology®
Handheld Particle Counters

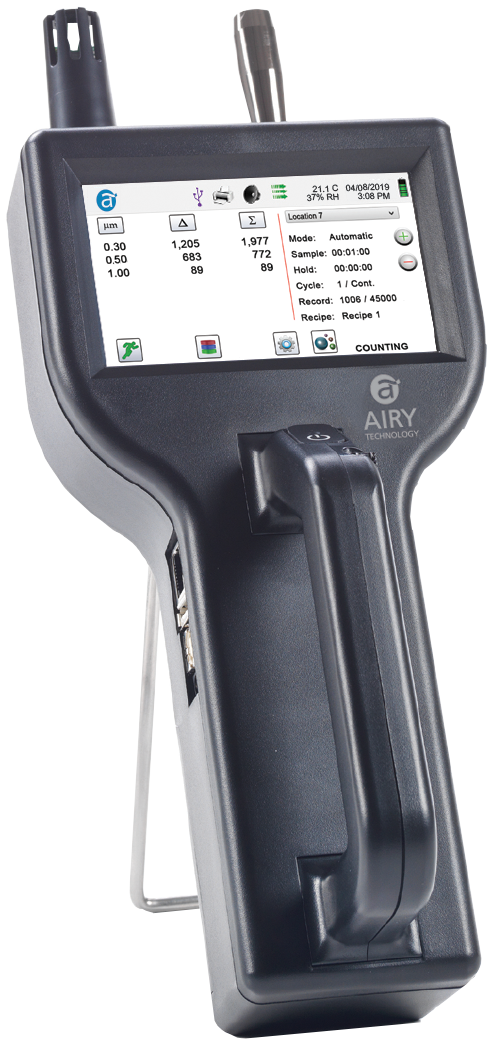

H8303 Handheld Airborne Particle Counters
0.1 CFM (2.83 LPM)
- Industry’s highest concentration of 15,000,000 particles/ft³ @ 10% coincidence loss
- Ideal for use in Cleanrooms, Industrial Health & Safety, and Air Quality applications
- >10 hours continuous operation on a fully charged battery
- Industry’s first Sleep Mode and Power Conservation Mode with intelligent battery
- Unparalleled and most comprehensive internal self-diagnostics of any remote particle counter
- Internet of Things (JSON) communication allows for network or cloud based data options
The Airy Technology® H303 Handheld Particle Counter measures 0.3 to 25.0 µm with a flow rate of 0.1 CFM (2.83 LPM). Easy to configure, this instrument displays up to 6 user-selectable size channels as well as optional temperature and relative humidity. View data on screen or via printer, real time through its versatile output options, or export to Instrument Management Software (IMS). Airy Technology counters can be controlled and monitored remotely via web browser.
All Airy Technology® counters meet ISO 21501-4 and JIS B9921. The H8303 ensures compliance with an on-board pulse height analyzer.
| Measures 0.3 μm to 25.0 μm |
| 0.1 CFM (2.83 LPM) flow rate |
| Long life laser diode technology |
| Measures up to 3 channels of simultaneous data |
| Approximates mass concentration in μg/m³ |
| Integrated handle for one-handed operation |
| Large easy-to-use icon driven color touch screen display |
| Stores up to 45,000 sample records and 1,000 sample locations |
| Easy configuration and transferable from instrument to instrument |
| Connect using USB or (optional) Ethernet, Wireless 802.11 b/g |
| Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209E |
| Internal audible alarm |
| User-selectable channel sizes |
| Complies with ISO 21501-4 and JIS B9921 standards |
| Easy to clean and wipe down with minimal particle traps |
| User-definable reports |
| Lightweight high-impact injection molded plastic enclosure |
| External printer and printing option |
| Optional temperature and relative humidity probe available |
| 1 year limited warranty. Extended warranties available. |
| Size Range | 0.3 to 25μm |
| Size Channels | Factory calibrated at 0.3, 0.5 and 5.0 μm |
| Flow rates | 0.1 CFM (2.83 LPM) |
| Concentration Limit | 15,000,000 Particles/ft³ @ 5% coincidence loss |
| Light Source | Long life laser diode |
| Battery Run Time | >10 hours continuous operation |
| Zero Count | <1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS) |
| Count Modes | Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration |
| Count Alarms | 1 to 9,999,999 counts |
| Calibration | NIST traceable |
| Display | 4.3" (10.9 cm) WQVGA (480x272) color touch screen |
| Printer (Optional) | External thermal printer |
| Vacuum Source | Internal pump with automatic flow control |
| Filtered Exhaust | Internal HEPA filter |
| Number of Channels | 3 |
| Custom Size Channels | Calibration for custom size channels available |
| Audible Alarm | Adjustable built-in alarm |
| Battery | Removable Li-ion |
| Battery Recharge Time | <2 hours with external battery charger |
| Communication Modes | USB |
| Optional Communication Mode | Ethernet, Wireless 802.11 b/g, RS485 or RS232 |
| Alarm | Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow |
| Standards | ISO 21501-4 and JIS B9921 |
| Calibration | Recommended minimum once per year |
| External Surface | High impact injection molded plastic |
| Dimensions (L x W x H) | 10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes |
| Weight | 2.2 lb (1.0 kg) |
| Accessories | Operating manual on USB flash drive, isokinetic probe, filter, battery, data download software, USB cable, power supply & cable |
| Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer, isokinetic probes, and temperature relative humidity sensor |
| Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout |
| Sample Locations | Up to 1,000 locations 20 characters long |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing |
| Storage Conditions | 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing |
| Warranty | 1 year limited warranty. Extended warranties available. |
 |  |  |  |
Part Number: AS-99015 | Part Number: EE-80092 | Rechargeable & Removable Part Number: EE-80003A | (For EE-80003A) Part Number: AS-99005A |
 |  |  |  |
Part Number: EE-80014A | 0.1 CFM (2.83 LPM) Part Number: AS-99002 | 0.1 CFM (2.83 LPM) Part Number: AS-99002A | Connector (5 POS) Part Number: EE-79015A |
 |  |  |  |
0.1 CFM (2.83 LPM) Part Number: PS-12041 | 0.1 CFM (2.03 LPM) Part Number: PS-12070 | 0.1 CFM (2.83 LPM) Part Number: PS-12022 | 1/8 (Stainless) Part Number: PS-12005 |
 |
/> |  |  |
Includes 2 Rolls of Paper Part Number: AS-99011 | Single Roll Part Number: AS-99012 | Cleanroom Paper (10 Pack) Part Number: AS-99013 | 15V ~2A 100-240 VAC Part Number: EE-80127 |
 |  |  |  |
USA, Japan, Philippines, Taiwan Part Number: EE-80128 | Europe & Korea Part Number: EE-80129 | UK, Malaysia & Singapore Part Number. EE-80130 | China & Australia Part Number: EE-80131 |
 |  |  |  |
3/8" OD (1/4" ID) Part Number: AS-99019 | 3/8" OD (1/4" ID) Bev-A-Line XX Part Number: AS-99037 | Part Number: MN-24001 | 6ft (1.8m) Part Number: AS-99022 |
 | | ||
User Manual (Printed) Part Number: MN-24001P | Validation Manual Part Number: MN-24002 |
